EOS EmoTec D

Sauna control unit


High-class digital sauna control unit for dry sauna operation.

The advanced control unit combines smart features and cutting-edge engineering with simplicity and comfort in use, setting the quality benchmark both in the private and in the commercial sector.

The EOS EmoTec is for dry sauna operation and consists of a remote control panel, a separate power box and a digital temperature sensor with high limiter fuse.

Also available for humid sauna operation:
EOS EmoTec H

  • High-class digital control unit for very demanding private and commercial saunas.
  • Compact-sized control panel with a TFT color display with flush-mounted or surface-mounted installation.
  • Digital temperature control range: 86 - 194 °F / 30 - 90 °C.
  • Multilanguage menu navigation (19 languages).
  • Innovative operation with jog-dial switch – simple, easy, intuitive.
  • Control panel installation at up to 328 ft / 100 m distance possible.
  • Cabin light output
  • Output for ventilation fan.
  • Control panel with screen saver and sleep mode.
  • Holiday home mode and display lock per pin code.
  • Pin code protected service level for setup and fine tuning.
  • Quick check for pre-set and real temperature in the sauna.
  • Firmware can be updated with a micro SD card (not included).
  • Heating time limitation:
    • 1 h (USA)
    • 6 h / 12 h / unlimited (CAN)
  • Power supply:
    • 9 kW: 240 V 2N AC 60 Hz
    • 9 kW: 208 V 3N AC 60 Hz
    • 15 kW: 208 V 3N AC 60 Hz

Electrical connection

15 kW: 208 V 3N AC 60 Hz
9 kW: 208 V 3N AC 60 Hz
9 kW: 240 V 2N AC 60 Hz

Temperature control range

30 - 90 °C / 86 - 194 °F

Cabin light output

min. 5 W, max. 100 W

Fan output

min. 5 W, max.150 W

Sensor system

Digital sensor 90 °C / 194 °F with safety temperature limiter

Control panel (H/W/D)

127 x 130 x 25 mm / 5 x 5.1 x 1 inches

Power box (H/W/D)

250 x 485 x 100 mm / 9.8 x 19 x 3.9 inches


Power

Item no.

USA/CAN: 208 V 3N AC 60 Hz , 9.0 kW

947774

USA/CAN: 208 V 3N AC 60 Hz , 15.0 kW

947773

USA/CAN: 240 V 2N AC 60 Hz , 9.0 kW

947775


Control panel designs

Anthracite / silver

Description

Item no.

EOS EmoTec USA control panel anthracite

947769

EOS EmoTec CAN control panel anthracite

947785


Anthracite / black

Description

Item no.

EOS EmoTec USA control panel black

948198

EOS EmoTec CAN control panel black

948199

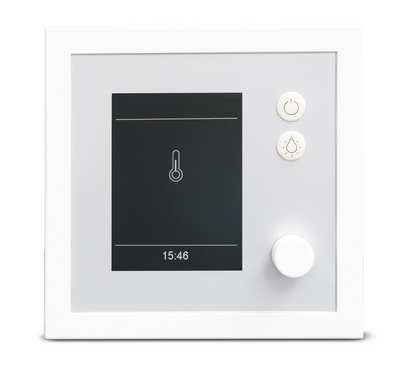

White / silver

Description

Item no.

EOS EmoTec USA control panel white

948200

EOS EmoTec CAN control panel white

948201
