EOS Gracil series

floor-standing-/wall-mounting

Sauna heater with extra slim construction.

The EOS Gracil series stands out through its straight-lined design and very space-saving construction – only 25 cm / 0.8 ft depth as floor-standing model and 27.5 cm / 0.9 ft as wall-mounting model (3 cm / 0.1 ft gap to the wall).

Thanks to its sleek, straight-lined design, the sauna heater series is perfectly suited for modern upper-class saunas.

Elegant brushed stainless steel top cover. Outer shell in anthracite pearl effect finish – also available with noble matt black finish.

Full size rock store with up to 44 lbs / 20 kg volume.

Accessories: Safety guard rail with mounting brackets optionally available.







Model variants





EOS Gracil

Floor-standing model for the Finnish (dry) sauna. Very space-saving construction - only 0.8 ft / 25 cm depth.

  • EOS Gracil black
  • EOS Gracil black

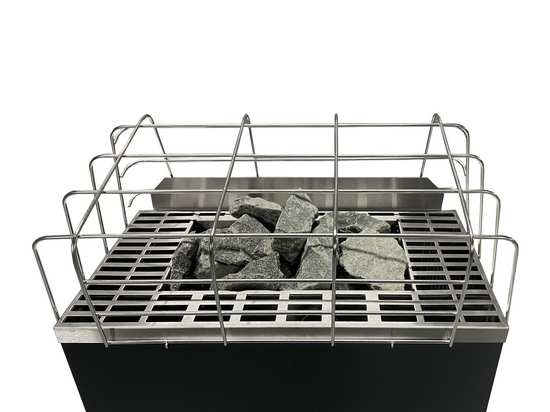

  • EOS Gracil cover protection





EOS Gracil W

Wall-mounting model for the Finnish (dry) sauna. Very space-saving construction - only 0.9 ft / 27.5 cm total depth (incl. 0.1 ft / 3 cm wall gap).

  • EOS Gracil W black
  • EOS Gracil W black
  • EOS Gracil W cover protection

Images show EOS Gracil models (European versions)



  • Very space-saving, slim design - ideal for small, compact size saunas
    • EOS Gracil:
      • Only 0.8 ft / 25 cm depth
      • Flat back - optimal for the placement in front of glass.
      • Optional rear wall cover panel in anthracite pearl effect / matt black finish.
    • EOS Gracil W:
      • Only 0.9 ft / 27.5 cm depth
      • Wall mounting with only 0.1 ft / 3 cm gap to the wall.
  • Stylish brushed stainless steel top cover.
  • Dust & debris collecting tray at the bottom to keep the sauna clean.
  • Optional wooden safety guard rail.
  • Rock store fits up to 44 lbs / 20 kg stones.

Electrical connection

240V 2PH / 208V 3PH AC 60 Hz

Dimensions H/W/D

76 x 50,5 x 25 cm / 2,5 x 1,6 x 0,8 ft

For sauna cabin size

3.2 - 4.5 sq m x 1.90 m (6.0 kW)
34.4 - 48.4 sq ft x 6.2 ft

4.2–6.3 sq m x 1.90 m (7.5 kW)
45.2-67.8 sq ft x 6.2 ft

4.7–7.4 sq m x 1.90 m (9.0 kW)
50.5-79.7 sq ft x 6.2 ft

Min. size air inlet and outlet

35 x 5 cm (6.0 kW & 7.5 kW)
1,2 x 0,2 ft

35 x 6 cm (9.0 kW)
1,2 x 0,3 ft

Weight withouth rocks (6.0 / 7.5 / 9.0 kW)

20.5 kg / 21.0 kg / 21.5 kg
45,2 lbs / 46,3 lbs / 47,7 lbs

Stone filling

20 kg / 44 lbs

Electrical connection

240V 2PH / 208V 3PH AC 60 Hz

Dimensions H/W/D

74 x 50.5 x 27.5 cm / 2.4 x 1.6 x 0.9 ft

For sauna cabin size

 3.2 - 4.5 sq m x 1.90 m (6.0 kW)
34.4 - 48.4 sq ft x 6.2 ft

4.2–6.3 sq m x 1.90 m (7.5 kW)
45.2-67.8 sq ft x 6.2 ft

4.7–7.4 sq m x 1.90 m (9.0 kW)
50.5-79.7 sq ft x 6.2 ft

Min. size air inlet and outlet

 35 x 5 cm (6.0 kW & 7.5 kW)
1,2 x 0,2 ft

35 x 6 cm (9.0 kW)
1,2 x 0,3 ft

Weight withouth rocks (6.0 / 7.5 / 9.0 kW)

 20.5 kg / 21.0 kg / 21.5 kg
45,2 lbs / 46,3 lbs / 47,7 lbs

Stone filling

20 kg / 44 lbs

EOS Gracil (208V / 240V)

Power

Item no.

6.0 kW

947531 / 947534

7.5 kW

947532 / 947535

9.0 kW

947533 / 947536

6.0 kW black

947985 / 947988

7.5 kW black

947986 / 947989

9.0 kW black

947987 / 947990



EOS Gracil W (208V / 240V)

Power

Item no.

6.0 kW

947537 / 947540

7.5 kW

947538 / 947541

9.0 kW

947539 / 947542

6.0 kW black

947991 / 947994

7.5 kW black

947992 / 947995

9.0 kW black

947993 / 947996
