EOS Cubo Avantgarde
Finnish sauna heater
Premium-class sauna heater for (dry) Finnish saunas
Floor-standing model for the Finnish (dry) sauna. Striking, distinctive design thanks to the stylish rock store extension frame with white quartz stones. The luxurious matt black finish on all sides perfectly completes the design – great for installation in the center or in front of glass panels.

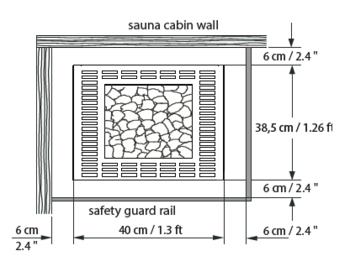

Very space-saving design – only 40 x 39 cm / 1.3 x 1.3 ft footprint. Service-friendly construction - heating elements have with no contact to sauna stones. Optimized air convection and rock store size ensure effective heat-up times and powerful sauna infusions.
Rock store fits approx. 35 kg / 77 lbs sauna stones. Delivery includes 10 kg / 22 lbs rounded white quartz stones, as well as 25 kg / 55 lbs regular sauna stones.
Notice: Lay quarz stones above the regular sauna stones.
-
-
-
-
With special rock store extension frame and 10 kg white quartz stones -
-
- Robust, durable and service-friendly construction.
- With rock store attachment and inclusive quartz stones.
- Luxurious matt black finish on all sides including the top.
- Compact size – only 38,5 cm / 1,3 ft depth.
- Uniform appearance on all sides – perfect for installation in front of glass panel or in the center of the sauna.
- 25 kg / 55 lbs diabase sauna stones + 10 kg / 22 lbs white quartz stones included in the delivery.
Electrical connection | 240V 2PH / 208V 3PH AC 60 Hz |
Dimensions H/W/D | 72 x 40 x 38,5 cm 2,4 x 1,3 x 1,3 ft |
For sauna cabin size | 3,7 - 5,3 qm x 1,90 m (7.5 kW) 5,8 - 7,9 qm x 1,90 m (10.5 kW) |
Min. size air inlet and outlet | 35 x 5 cm (7.5 kW) |
Weight withouth rocks | 28 kg / 62 lbs |
Stone filling | 25 kg + 10 kg quartz stones |
EOS Cubo Avantgarde (208V)
Power | Item no. |
7.5 kW | 947523 |
9.0 kW | 947524 |
10.5 kW | 947525 |
12.0 kW | 947526 |
EOS Cubo Avantgarde (240V)
Power | Item no. |
7.5 kW | 947527 |
9.0 kW | 947528 |
