EOS Morpheus Pro
floor-standing
-
-

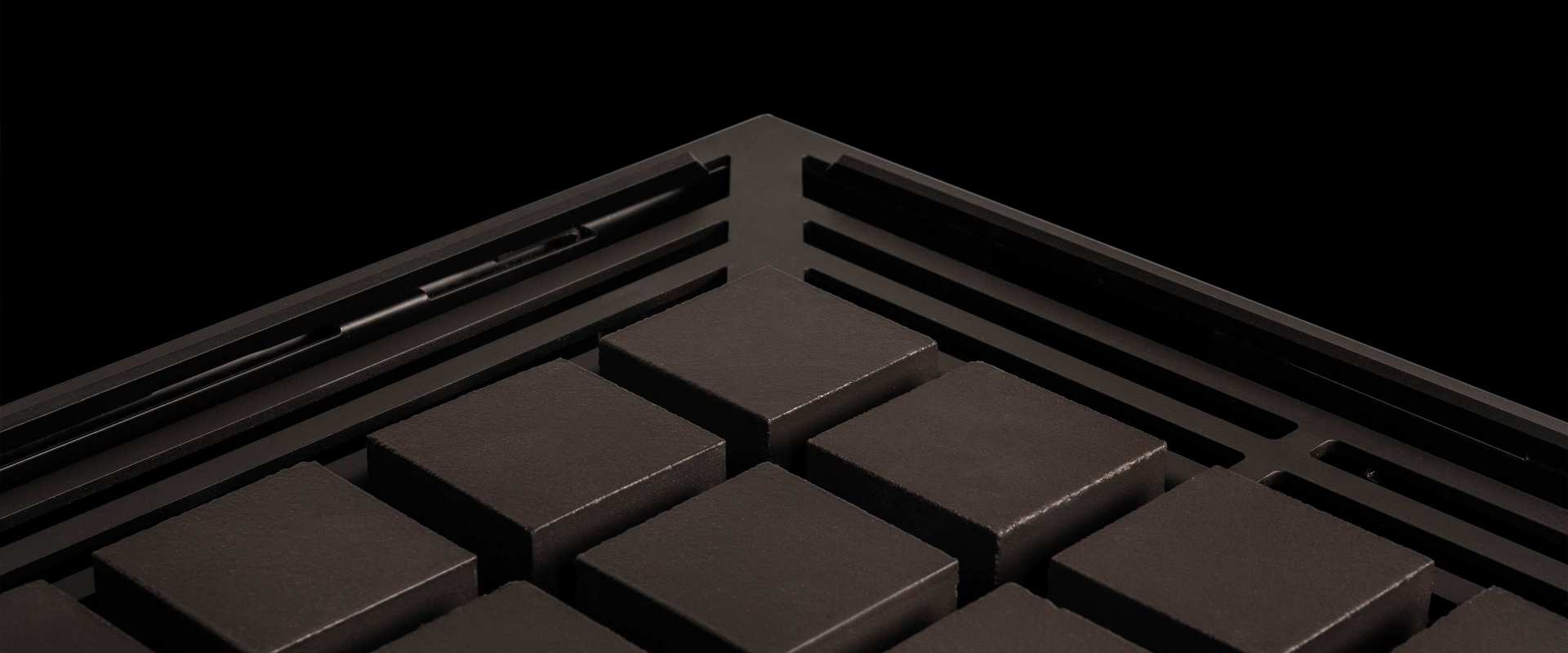

EOS Morpheus Pro Black Brass model with optional Cubius sauna stones -
EOS Morpheus Pro Black model
Modular Design for Maximum Comfort.
With the EOS Morpheus, EOS introduces an innovative sauna heater designed specifically for small commercial facilities. The focus is on easy maintenance, high efficiency, and a modern, modular design that significantly reduces service and maintenance times. Operators benefit from fast servicing and noticeable cost savings during day-to-day operation.
- Removable rock store
- Heating register 'plug & play'
- Servicing accessible from above
- Rock store with special 'Dual Heat'-heating element
- Adjustable feet for leveling and securing
- Special wiring upon request.
Features and Options
- The heart of the Morpheus is a newly developed rock store and a new heating element. Both can be removed and replaced from above without any tools.
- Thanks to the plug & play connection, no electrician is needed to replace the heating elements. In addition, the rock store can be pre-filled, allowing for a clean and efficient on-site exchange—without making the sauna cabin dirty.
- In addition to conventional sauna stones, the EOS Morpheus also supports the exclusive EOS Cubius stones, available in elegant black, white and natural finishes.
- Dual Heat technology for optimal sauna infusions: A true comfort feature is the separately connected 1.0 kW heating element. It extends into a rock store insert, ensuring that the sauna stones remain hot at all times – even after the main heating element has switched off once the room temperature is reached. This Dual Heat technology noticeably enhances the quality of sauna infusions and provides a consistently enjoyable sauna experience.
- Removable rock store
- Heating register 'plug & play'
- Servicing accessible from above
- Rock store with special 'Dual Heat'-heating element
- Adjustable feet for leveling and securing
- Compact and space-saving – only 40 × 43.7 cm.
- Robust and service-friendly construction. Heating elements can be replaced without removing the sauna stones.
- Optimized balance between stone volume and air convection for fast heat-up times and powerful sauna infusions.
Electrical connection | 400 V 3N ~ 50/60 Hz |
Dimensions H/W/D, in cm | 87,6 / 43,7 / 40 |
For sauna cabin size ( (6 / 8 / 10 / 12 kW) + 1 kW ) | 7 - 10 m³ / 9 - 14 m³ / 11 - 15 m³ / 14 - 18 m³ |
Stone filling | 25 kg |
Morpheus Pro Black Brass
Power | Item no. |
6,0 kW + 1,0 kW | 949424 |
8,0 kW + 1,0 kW | 949425 |
10,0 kW + 1,0 kW | 949426 |
12,0 kW + 1,0 kW | 949427 |
Morpheus Pro Black
Power | Item no. |
6,0 kW + 1,0 kW | 949549 |
8,0 kW + 1,0 kW | 949550 |
10,0 kW + 1,0 kW | 949551 |
12,0 kW + 1,0 kW | 949552 |
