EOS EmoStyle Hi series

control unit, dry and humid sauna

Innovative premium-class control unit for installations inside saunas.

Luxury class digital control system for private and commercial operation. For dry and humid sauna operation with humidity control (for all EOS Bi-O type sauna heaters).

Features a special design display panel with glass front, colour TFT display and a stylish wooden inlay cut of maple or walnut with capacitive buttons. With the remote display panel and separated relay box. Innovative operating concept allows quick and intuitive operation.

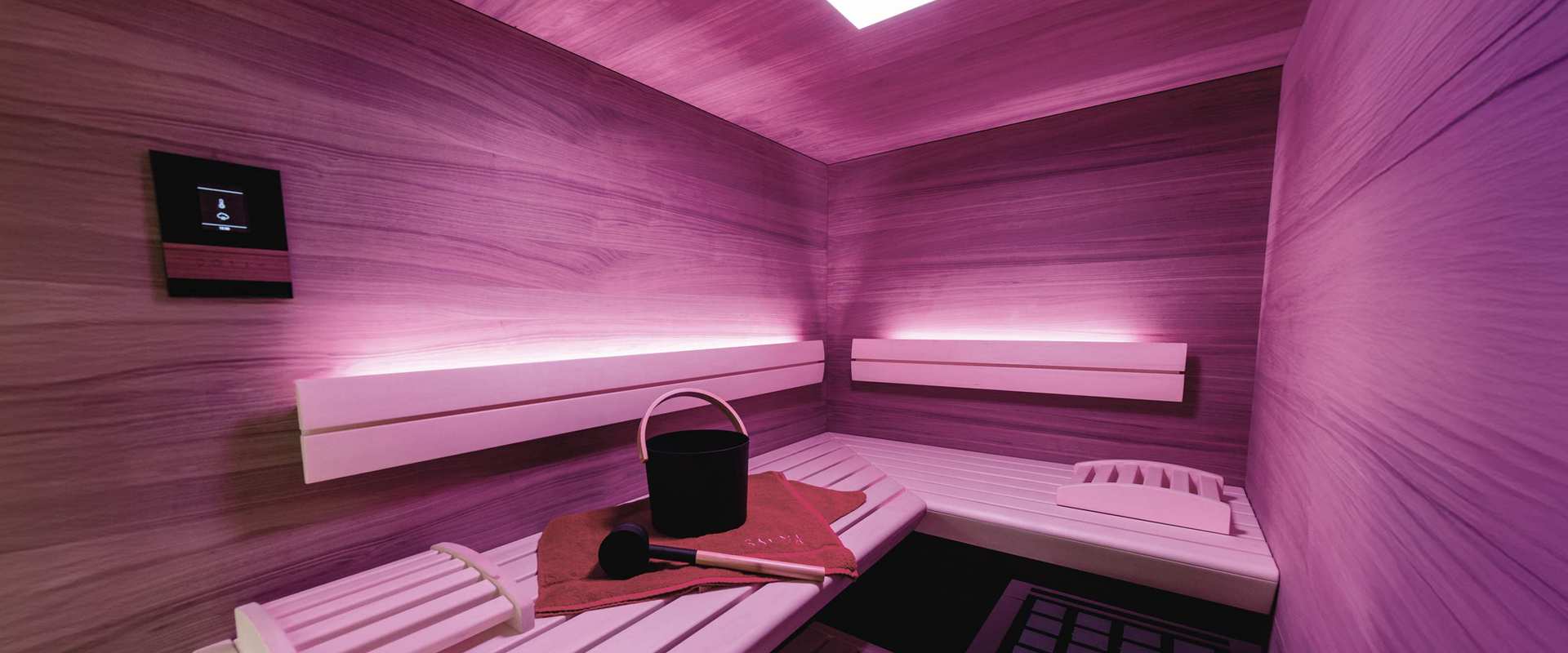

For installations inside sauna cabins. All functions as the EOS EmoStyle D / H control unit.

Choice of 4 designs of the display panel:

White glass with maple inlay
White glass with walnut inlay
Black glass with maple inlay
Black glass with walnut inlay

The Cloud version features WiFi and cloud connectivity, and is compatible with the EOS Spa Control App and the door contact safety system for monitoring door status. Thanks to the EOS Cloud connection, the control unit is always up to date via over-the-air software updates.

Always up to date with WiFi connectivity

EOS EmoStyle Hi

Control unit for saunas with dry and humid operation. Compatible with all Bi-O sauna heaters up to 10 kW. Switching capacity can be extended with power extension units. Temperature control range: 30 °C – 115 °C (Finnish) and 30 °C – 70 °C (Bi-O).

EOS EmoStyle Hi - black walnut
EOS EmoStyle Hi - black maple
EOS EmoStyle Hi - white maple
EOS EmoStyle Hi - white walnut
Relay box

EOS EmoStyle Hi Cloud

EOS EmoStyle Hi Cloud - black walnut
EOS EmoStyle Hi Cloud - black maple
EOS EmoStyle Hi Cloud - white maple
EOS EmoStyle Hi Cloud - white walnut
Relay box

Features and benefits

Display panel suitable for installations inside sauna cabins.
Stylish glass design display panel with natural wood inlay. Innovative operation via capacitive buttons.
Black or white design with maple or walnut wood inlays.
TFT colour display with multi-language navigation, 19 languages.
Free selection of two included sensor housings in anthracite and beige.
Additional functions and features can be added with extension modules.
With humid sauna operation control - suitable for all EOS Bi-O type sauna heaters. Proportional to time (for constant steam production) or as per relative air humidity with an optional humidity sensor (exact rel. air humidity control in %).
Large scope of additional functions - sauna-dry mode with adjustable temperature and fan operation, smart-heat in humid mode and much more.
Guided setup menu, pin code protected service level for extended settings and fine-tuning, special innovative functions.
Supports additional bench sensor and humidity sensor.
Cloud-version:
- WiFi and cloud capable– always up to date with the latest software.
- Integrated WiFi dongle allows easy pairing.
- Connection option for the door contact safety system to monitor door status.
- Extended control with the EOS Spa Control App.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Power output	10,0 kW (can be expanded with LSG: LSG 10 / LSG 18 / LSG 36)
Temperature control range	30 - 115 °C (Finnish) 30 - 70 °C (Bi-O)
Heating time limitation	6 h, 12 h, unlimited
Start time pre-selection	24 h real time or week timer
Cabin light output	230 V, ohmic, capacitive, inductive load.
Fan output	230 V / max. 150 W, adjustable
Sensor system	Digital, inc. 5 m cable. Bench sensor optional.
Control panel (H/W/D)	202 x 142 x 42 assembly in the cabin
Relay box (H/W/D)	270 x 300 x 100 mm wall mounting

Model overview

EOS EmoStyle Hi

Item no.
946241	EOS EmoStyle Hi maple black
946317	EOS EmoStyle Hi maple white
946414	EOS EmoStyle Hi walnut black
946415	EOS EmoStyle Hi walnut white

EOS EmoStyle Hi Cloud

Item no.
949355	EOS EmoStyle Hi Cloud maple black
949354	EOS EmoStyle Hi Cloud maple white
949357	EOS EmoStyle Hi Cloud walnut black
949356	EOS EmoStyle Hi Cloud walnut white
