EOS EmoStyle series

control unit, dry and humid sauna

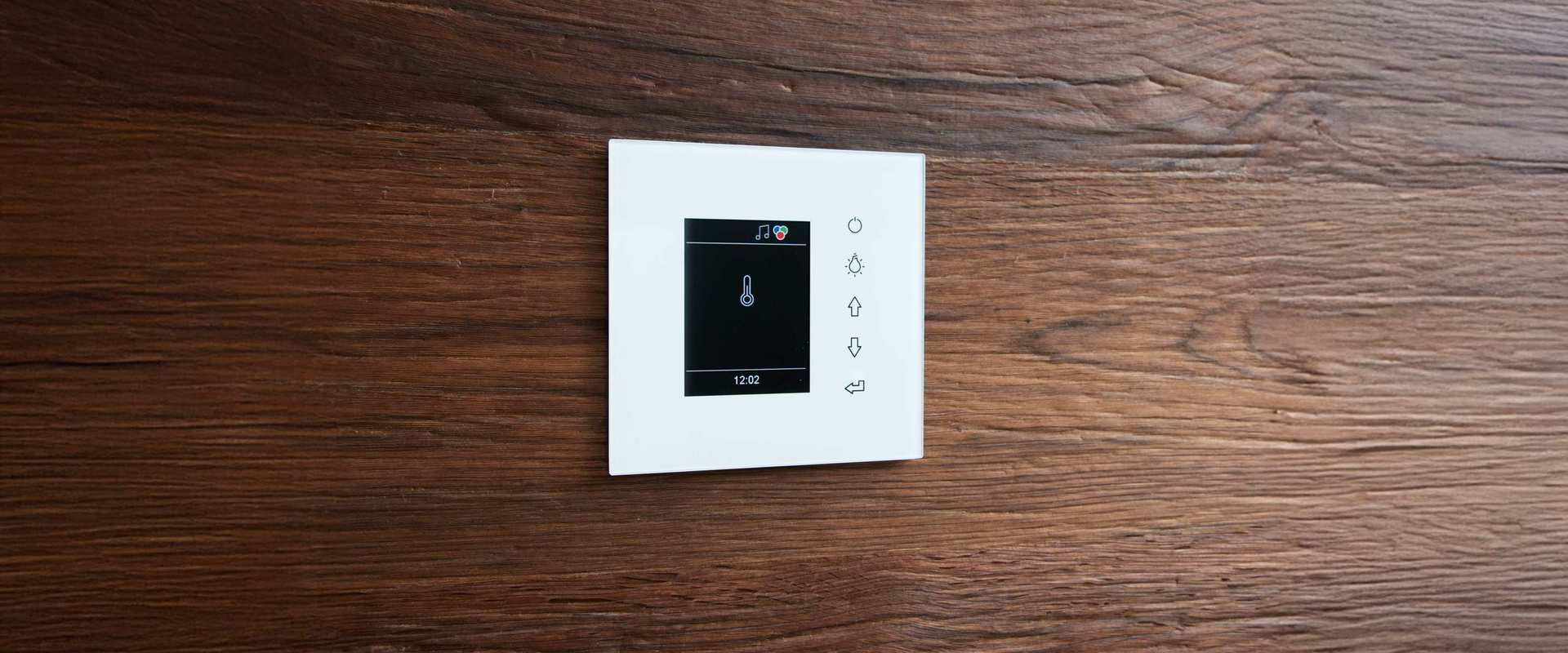

Luxury class digital sauna control unit.

Advanced control system for private and commercial operation. Features an exclusive display panel with glass front, colour TFT display, capacitive buttons and separate power unit. Available in white and black design. Thanks to the innovative operating concept, the unit can be operated intuitively and quickly, and numerous functions can be reached and set very quickly.

H-version additionally with humidity control. For all EOS Bi-O type sauna heaters. Humidity control - either in proportional to time way (allows constant steam production per given time) or with an optional humidity sensor as per relative air humidity (allows exact humidity setting per rel. air humidity in %). Output for vaporizer up to 3 kW. With water shortage detection. Quick selection between dry sauna or humid sauna operation modes with a jog-dial.

With the additional convenient features:

After-heating (sauna dry program after humid mode)
Adjustable after-heating temperature
Adjustable after-heating extractor fan speed
Adjustable after-heating time
Adjustable grace time for refilling the water tank by low level
Smart-Heat functions heats up the sauna faster and prevents that the steam production starts while the sauna is not yet well heated

The Cloud version features WiFi and cloud connectivity, and is compatible with the EOS Spa Control App and the door contact safety system for monitoring door status. Thanks to the EOS Cloud connection, the control unit is always up to date via over-the-air software updates.

Always up to date with WiFi connectivity

Model variants

EOS EmoStyle D

Control unit for Finnish (dry) sauna. Ideal for demanding private and commercial use. Temperature control range: 30 °C – 115 °C.

EOS EmoStyle white
EOS EmoStyle black
Relay box

EOS EmoStyle H

Control unit for saunas with dry and humid operation. Compatible with all Bi-O sauna heaters up to 10 kW. Switching capacity can be extended with power extension units. Temperature control range: 30 °C – 115 °C (Finnish) and 30 °C – 70 °C (Bi-O).

EOS EmoStyle white
EOS EmoStyle black
Relay box

EOS EmoStyle D Cloud

Control unit for Finnish (dry) sauna. Ideal for demanding private and commercial use. Temperature control range: 30 °C – 115 °C. Always up to date thanks to WiFi connectivity and EOS Cloud integration.

EOS EmoStyle white
EOS EmoStyle black
Relay box

EOS EmoStyle H Cloud

EOS EmoStyle white
EOS EmoStyle black
Relay box

Features and benefits

Compact-size control panel with a TFT colour display with flush-mounted or surface-mounted installation.
Display panel available in anthracite, black or white design.
Menu navigation in 19 languages (DE, EN, FR, RU, ES, NL, IT, PL, SLO, FIN, TR, CZ, RO, BG, HU, HR, SK, DK).
Quick and simple operation thanks to capacitive buttons.
With a separate slim-size display panel (can be installed up to 100 m away from the sauna).
Dimmable cabin light output 230V, automatic detection of inductive and capacitive loads.
Output for ventilation fan 230V (3 speeds).
24 h pre-set timer and extended week timer (4 programs per day possible).
Heating time limitation 6 h / 12 h / unlimited.
Display panel with screen saver and sleep mode.
Holiday home mode and display lock per pin code.
Pin code protected service level for setup and fine-tuning.
Volt-free output.
Digital type sensor for precise and interference-resistant control. Bench sensor optionally available.
Quick check for pre-set and real temperature in the sauna.
Digital microchip based temperature sensor with 5 m cable.
Firmware can be updated with a micro SD card (not included).
Additional control features through optional extensions: coloured light control for LED, music control, remote start and operation.
Free selection of two included sensor housings in anthracite and beige.
H-version:
- For all EOS Bi-O type sauna heaters:
- Humidity control - proportional to time (10 steps) or as per relative air humidity in % with an optional humidity sensor.
- Numerous comfort functions such as sauna-dry mode, adjustable after-heating temperature, fan runtime, after-heating time, smart-heat function in humid mode and much more.
- Guided setup, pin-code protected service level, additional innovative smart features (software updates, custom firmware, etc.).
Cloud-version:
- WiFi and cloud capable– always up to date with the latest software.
- Integrated WiFi dongle allows easy pairing.
- Connection option for the door contact safety system to monitor door status.
- Extended control with the EOS Spa Control App.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Power output	10,0 kW (can be expanded with LSG: LSG 10 / LSG 18 / LSG 36)
Temperature control range	30° - 115°C (Finnish) 30° - 70° C (Bi-O)
Heating time limitation	6 h, 12 h, unlimited
Start time pre-selection	24 h real time or week timer
Cabin light output	230 V, ohmic, capacitive, inductive load.
Fan output	230 V / max. 150 W, adjustable
Sensor system	Digital, inc. 5 m cable. Bench sensor optional.
Control panel (H/W/D)	132 x 135 x 25 mm installation assembly (mounting - optional)
Relay box (H/W/D)	270 x 300 x 100 mm wall mounting
