EOS Filius series

wall-mounting

Compact sauna heater for private sauna cabins.

With only 24 cm depth, the EOS Filius series is a very space-saving model and still offers a fairly large 8 kg rock store. Mounts directly on the sauna wall.

Contemporary, timeless design. Stainless steel top, outer shell in anthracite pearl effect finish.

Rock store fits up to 8 kg stones.

The Bi-O variant is additionally equipped with an integrated vaporizer at the left or right-hand side. Includes a holder for herbs and oils. Manual filling (approx. 2 liters). Integrated dry-run protection and acoustic water shortage warning.

EOS Filius W

Wall-mounting model for the Finnish (dry) sauna. Rock store fits up to 8 kg stones.

EOS Bi-O Filius W

Wall-mounting model with integrated vaporizer for flexible climate forms. Rock store fits up to 8 kg stones.

Your advantages

Sauna heater for private sauna cabins from 4 to 10 m³.
Compact, extra slim design - only 24 cm depth, direct mounting to the sauna wall.
Modern, timeless design. Brushed stainless steel top, outer shell in anthracite pearl effect finish.
Large rock store for temperature stability and powerful water splashes.
Rock store fits up to 8 kg stones.
EOS Bi-O Filius W:
- Flexible sauna climate settings.
- Integrated vaporizer, 0,75 kW, can be placed on the left and on the right side.
- Dry-run protection with acoustic alarm.
- Essences cupholder at the steam output.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz (Filius W) 400 V 3N / 230 V 1N ~ 50/60 Hz (Bi-O Filius W)
Fuse protection (control unit)	3 x 16 A
Dimensions H/W/D, in cm	57 / 40 / 24 (Filius W) 57 / 47 / 24 (Bi-O Filius W)
For sauna cabin size (4,5 / 6,0 / 7,5 kW)	4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³

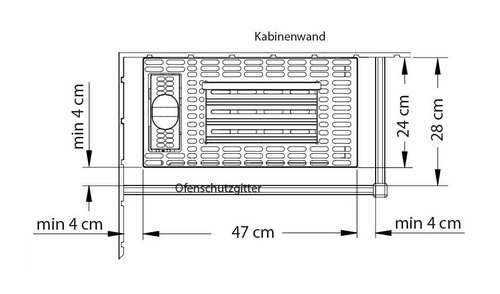

Min. size air inlet and outlet	35 x 11 cm
Gewicht ohne Steine und Verpackung	11 kg (Filius W) 18 kg (Bi-O Filius W)
Weight withouth rocks	8 kg
Power extension required	no
