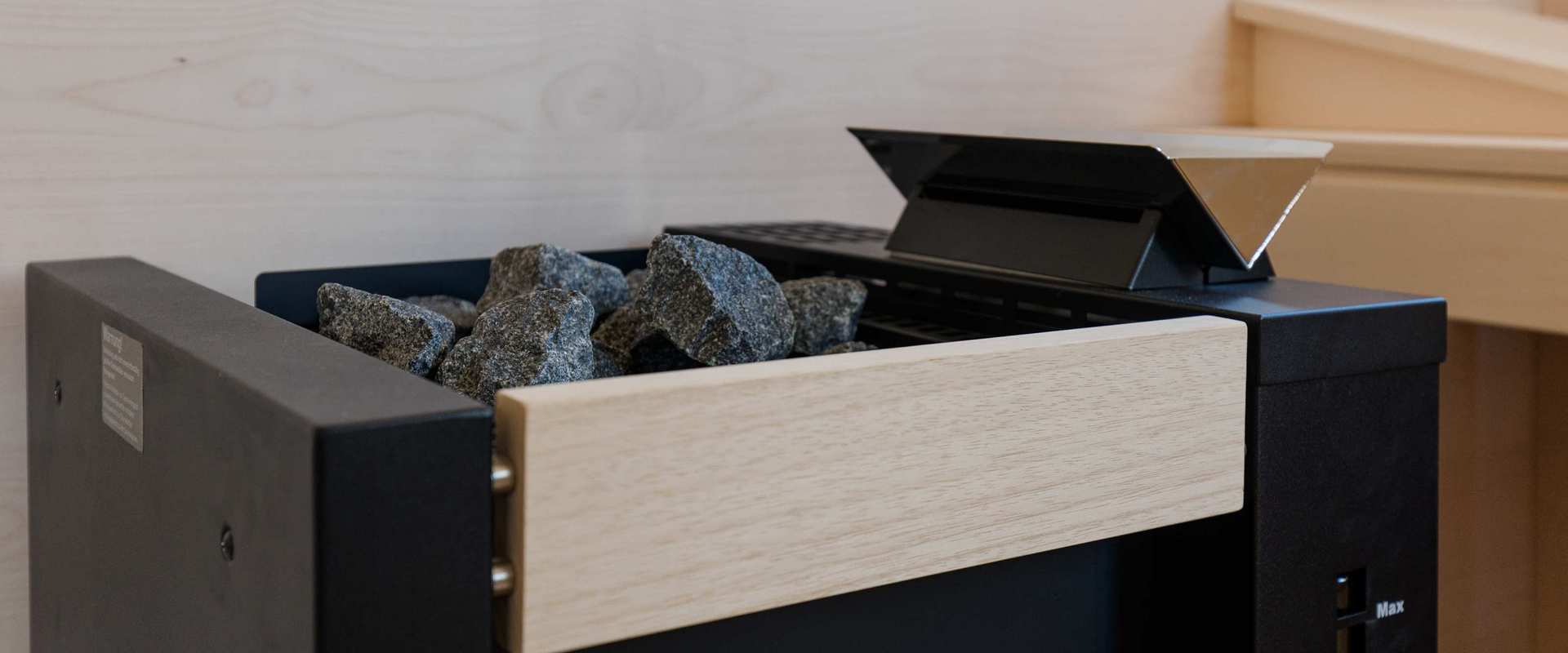

EOS Herkules S60 series

floor-standing

High-performance exclusive sauna heaters for sauna cabins up to 25 m³.

EOS Herkules S60 range features a minimalistic, straight-lined design with an elegant decorative wooden strip. Side panels in anthracite pearl effect finish with the brushed stainless steel front side. Also available with high-quality matt black finish.

Thanks to the 60 kg large rock store, EOS Herkules S60 models offer an exceptional heat storage and powerful steam shocks. With an optional rear wall cover panel, the sauna heater may be installed in front of glass panels.

The Bi-O variant is additionally equipped with an integrated vaporizer. Includes a holder for herbs and oils. Manual filling (approx. 8 liters). Integrated dry-run protection with acoustic alarm.

Optional: Heater guard rail with mounting brackets, rear wall cover panel.

EOS Herkules S60

Floor-standing model for the Finnish (dry) sauna. Rock store fits up to 60 kg stones.

EOS Herkules S60 black

EOS Herkules S60 Vapor

Floor-standing model with integrated vaporizer for flexible climate forms. Rock store fits up to 60 kg stones..

EOS Herkules S60 Vapor black

Your advantages

Exclusive design with brushed stainless steel front and anthracite pearl effect coated side panels.
Durable, long-lasting construction, all made of stainless steel.
Also available with elegant matt black finish.
No direct contact between stones and heating elements – for improved air convection and easy service.
Large 60 kg rock store for optimal heat storage and effective water evaporation
Compact footprint – only 51 x 53 cm size
EOS Herkules S60 Vapor:
- Flexible sauna climate settings.
- 2 kW vaporizer with stainless steel water tank. Manual filling.
- Dry-run protection with acoustic alarm.
- Essences cupholder at the steam output.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Dimensions H/W/D, in cm	85 / 51 / 53 (S60) 85 / 53 / 53 (S60 Vapor)
For sauna cabin size (9 / 12 / 15 kW)	9 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
Min. size air inlet and outlet (9 / 12 / 15 kW)	35 x 6 cm / 35 x 7 cm / 35 x 9 cm
Fuse protection control unit	3 x 16 A
Fuse protection PEB unit (9 kW / 12 - 15 kW)	no / 3 x 16 A
Stone filling	60 kg
Power extension required (9 kW / 12 - 15 kW)	no / PEB 10
