EOS Goliath HD

floor-standing, heavy-duty

Premium class sauna heater for intensive, demanding commercial sauna operation.

The EOS Goliath HD sauna heater unites modern design with reliable top performance: High-performance floor-standing model for the Finnish (dry) sauna in large sauna cabins.

Modern straight-lined design, anthracite pearl effect finish, brushed stainless steel top. Durable triple shell wall construction, completely made of stainless steel. Red-brown powder coating in "Rust Marble" upon request.

"Heavy-duty" version with the internal wiring as massive copper rails. Copper rails as standard inner wiring make the high-performance heater Goliath HD perfectly suitable for saunas with particulary intensive commercial use.

The extra-large rock store with enlarged air intakes guarantees a stable air convection for an optimal sauna climate. The 18 top performance heating elements have no contact between the sauna stones, replacement of elements without removal of stones possible - thus, servicing and lifetime of heating elements is notably increased.

Rock store fits approx. 75 kg stones.

Optional: Aroma tray, stack frame, guard rail – optional mounting brackets allow mounting a wooden guard rail in own design directly on the EOS Goliath HD heater. Optional EOSafe L safety system ensures safety in your sauna.

Power	Item no.
18,0 kW	947826
24,0 kW	947827
30,0 kW	947828
36,0 kW	947829

Guard rail optional
Aroma tray optional
Guard rail and aroma tray optional
Guard rail and aroma tray optional. Red-brown powder coating in "Rust Marble" upon request.
Aroma tray optional
Aroma tray optional
Aroma tray optional
EOSafe L optional
EOSafe L optional
Aroma tray optional
Stack frame optional

Your advantages

High performance heater for very intensive commercial operation.
For design oriented, demanding facilities.
Service and maintenance friendly.
Modern sauna heater for large saunas up to 75 m³.
Very robust and durable, completely made of stainless steel. Reinforced frame construction.
External shell in anthracite pearl effect finish. Brushed stainless steel top. Terminal box with ceramic terminals.
Optional brackets for heater guard rail mounted directly on the heater.
No contact between sauna stones and heating elements for improved heating performance and longer service life of heating elements - heating elements can be replaced without removing the rocks.

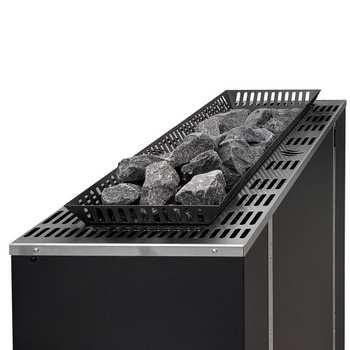

Extra-large rock store fits approx. 75 kg stones.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Fuse protection control unit	3 x 16 A
Fuse protection LSG unit (18,0 / 24,0 / 30,0 / 36,0 kW)	3 x 16 A / 3 x 35 A / 3 x 35 A / 3 x 63 A
Dimensions H/W/D, in cm	83 / 96 / 47
For cabin size (18,0 / 24,0 / 30,0 / 36,0 kW)	24 - 35 m³ / 35 - 45 m³ / 45 - 65 m³ / 65 - 75 m³
Min. size of air inlet and outlet (18,0 / 24,0 / 30,0 / 36,0 kW)	50 x 6 cm / 50 x 8 cm / 50 x 10 cm / 50 x 10 cm
Weight withouth rocks	approx. 85,0 kg
Power extension required (18,0 / 24,0 - 36,0 kW)	PEB 10 / PEB 36
