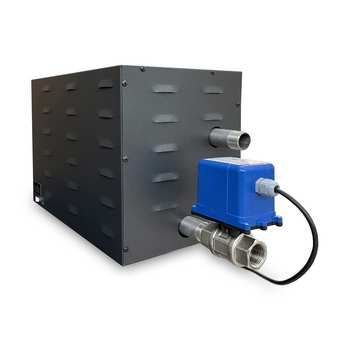

EOS SteamAttrac

Steam generator

The Performer.

The affordable yet reliable steam generator is a great choice for compact or middle size steam rooms. Recommended for residential use.

EOS SteamAttrac can be also used as an auxiliary steam source in large saunas with humid operation. Furthermore it can be enhanced with various options.

Special technical solutions possible upon request, e.g. for use on ships.

Without control unit.

Requires an external control unit - EOS Econ S2, LSG Steam for EOS EmoTouch 3.


Power

Item no.

3,0 kW

946838

4,0 kW

946839

6,0 kW

946840



  • Compact-size wall-mounting model.
  • Very stable and reliable steam production.
  • Robust stainless-steel outer housing with anthracite finish.
  • Durable stainless steel water tank with high-performance heating elements with practical single-block mounting for easy maintenance.
  • Dry run protection with automatic switch-off by overheating.
  • Service-friendly design with easy access to all components.
  • Automatic drain after use.
  • Reminder indicator for cleaning / descaling.

Power supply (3 / 4 - 6 kW)

230 V 1N ~ 50Hz / 400 V 3N ~ 50Hz

Connection - mains (3 / 4 - 6 kW)

3 x 1,5 mm² / 5 x 1,5 mm²

Fuse protection (3 / 4 - 6 kW)

1 x 16 A / 3 x 16 A

Steam output per hour (3 / 4 / 6 kW)

4 kg / 5 kg / 8 kg

Dimensions H/W/D, mm

330 x 450 x 270

Net weight

18 kg

Water supply

3/4“ outer thread

Water supply pressure

2 - 8 bar

Steam output

1“ outer thread

Power

Acryl steam room

Wall cladding made of tiles / hard foam

Wall cladding made of tiles on concrete

Solid wall made of concrete /tiles

3 kW

up to 4 m³

up to 3 m³

up to 3 m³

up to 2 m³

4 kW

up to 5 m³

up to 4,5 m³

up to 3,5 m³

up to 2,5 m³

6 kW

4,1 - 8 m³

3,1 - 6 m³

3,1 - 5 m³

2,1 - 4 m³


For further information and specifications, please do not hesitate to contact us.
