EOS EmoTouch 3

CONTROL UNIT, TOUCHSCREEN

With just one EOS EmoTouch 3 display you can control up to eight separate cabins

EmoTouch, once launched as a classic sauna control unit, has grown in the 4th generation to a sophisticated scalable wellness management system. Now the EOS EmoTouch 3 allows control of a wide range of wellness applications, thanks to the separate LSG modules.

Modules and cabin types:

LSG Sauna - for traditional saunas (dry and humid)
LSG Steam - for steam rooms (also with other brand generators)
LSG Hamam - for traditional Turkish baths (hamam) or for traditional Roman baths (Laconium, Tepidarum)
SteamRock Premium - for steam rooms or Moroccan baths (humid hamam)
LSG Infrared - for infrared warming cabins

Combine the cabins as you wish and require: In every cabin you can regulate not only the heating, but a large number of additional features like cabin light, ventilation and the special extension modules allow control of LED colour light effects, music and much more.

Item no.	Model
946504	EOS EmoTouch 3 black (Sauna)
946505	EOS EmoTouch 3 white (Sauna)

946991	EOS EmoTouch 3 black (Hammam)
946992	EOS EmoTouch 3 white (Hammam)

Features and benefits

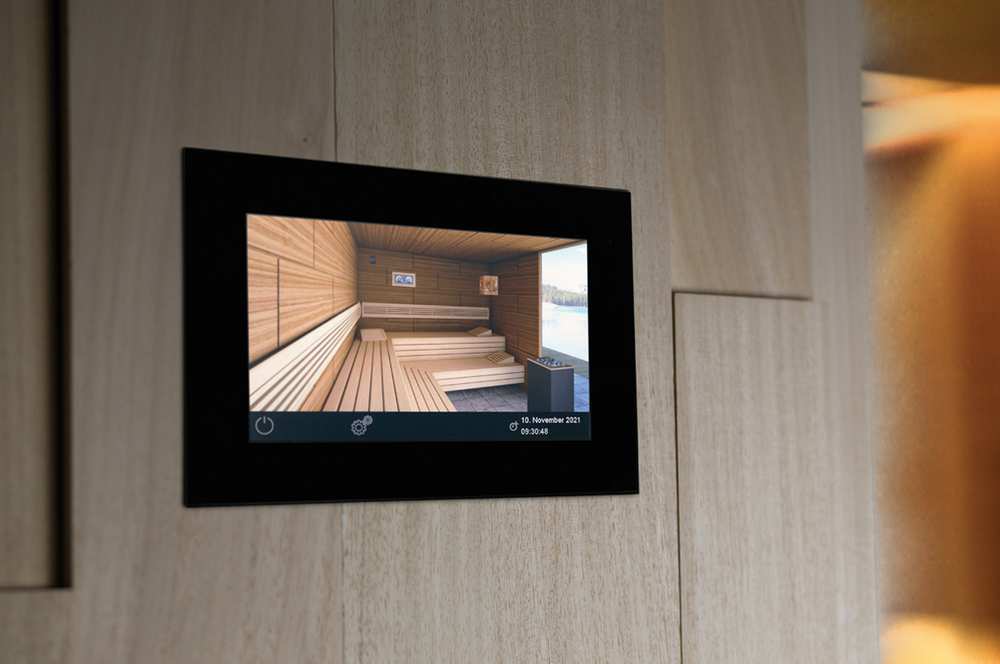

Just one exclusive rimless glass front display with the 7“ capacitive colour touch-screen display panel - makes operation faster, easier, space-saving, reasonably priced and more intuitive.
Multi-cabin control - one display panel replaces up to 8 separate control panels for miscellaneous cabin types - sauna, infrared, steam and more.
Fully redesigned graphic user interface allows direct, intuitive access to all functions and settings, including the choice of various cabin designs (themes).
Easy navigation with icons and clear text function description in 20 languages - (DE, EN, FR, RU, ES, NL, IT, PL, SLO, FIN, TR, CZ, RO, BG, HU, HR, SK, DK, SLK, CN).
Pin code protected service level for extended settings and fine tuning - allows to adjust the control to suit individual needs.
Innovative guided setup, clear text messaging (functions, errors) and numerous smart control functions - to make regulation simple, quick and easy as never before.
Premium functions - Week timer (4 programs / day) with individual climate settings.
Control every connected cabin individually or operate them all at once.
Additional functions for every cabin - coloured light, sound, fan, remote control, etc.

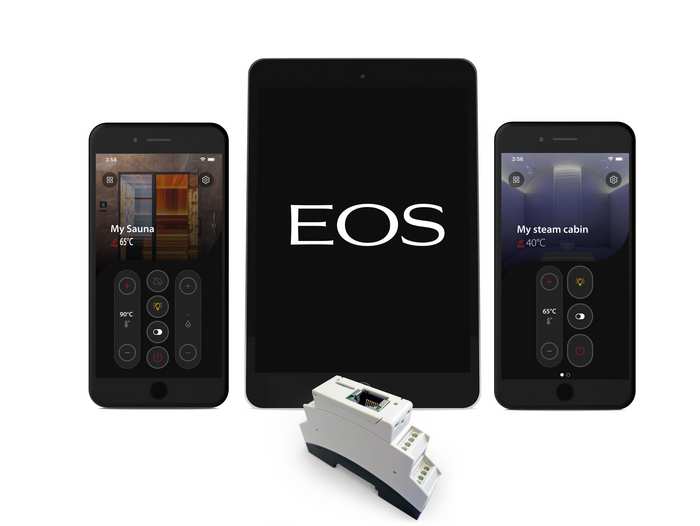

Remote control from a smartphone with a free EOS Spa Control app possible.
Up to 50 m installation distance between touch-screen display and sauna cabin - 5 m connection cable included.
Future-safe - the EOS EmoTouch 3 firmware can be easily updated on-site.
System backup & restore and system image function – helps to save valuable time to set up the system e.g. after a reset.
High safety standards comply with the latest EU norms

Technical specifications

Electrical connection	400 V 3N ~ 50 Hz
Power output	10,0 kW resistive load (extension possible: LSG 10 / LSG 18 / LSG 36), 3,0 kW for vaporizer in humid sauna mode.
Temperature control range	30 - 115 °C
Humidity control	Proportional to time (0 - 100%) or with humidity sensor (rel. %)
Heating time limitation	6 h, 12 h, unlimited
Start time pre-selection	24 h real time or week timer
Cabin light output	230 V, dimmable. Resistive, capacitive, inductive load
Fan output	230 V / max. 100 W, adjustable speed
Sensor system	Digital, inc. 5 m cable. 2nd sensor and humidity sensor optional.
Control panel (H/W/D)	142 x 210 x 42 mm
