EOS Bi-O Thermat W

wall-mounting

Universal sauna heater with vaporizer for private sauna cabins.

Affordable sauna heater with integrated vaporizer, 1,5 kW - for various climate forms: traditional dry Finnish, soft steam room, herbal bath etc.

EOS Bi-O Thermat W features a timeless, elegant design, thanks to its aluminium die-cast top and scratch resistant anthracite pearl effect outer shell. Double-walled construction. Rock store and drip pan made of stainless steel.

Vaporizer at the right-hand side with herbs holder. 5 l water tank - manual filling. Dry-run protection with acoustic alarm.

Rock store fits approx.15 kg stones.

Power	Item no.
6,0 kW	945484
7,5 kW	945485
9,0 kW	945486

Also available as Finnish version:
EOS Thermat W

Your advantages

Flexible sauna climate settings.
Affordable combi-heater with integrated vaporizer for private sauna cabins.
Vaporizer, 1,5 kW with 5 l tank - manual water filling.
Dry-run protection with acoustic alarm.
Die-cast aluminium top, anthracite pearl effect finish.
Optimal relation between stone volume and air convection system for fast heat-up times and powerful water splashes.
Rock store fits approx.15 kg stones.

Technical specifications

Electrical connection	400 V 3N ~ 50/60 Hz
Power Vaporizer	1,5 kW 5 l
Fuse protection (control unit)	3 x 16 A
Dimensions H/W/D, in cm	60 / 45 / 38
For sauna cabin size (6,0 / 7,5 / 9,0 kW)	6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³

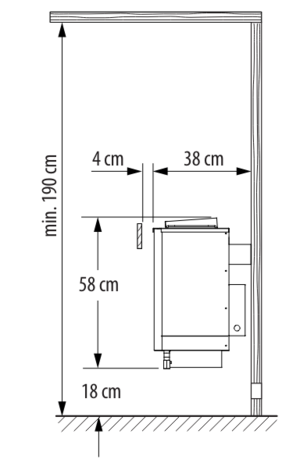

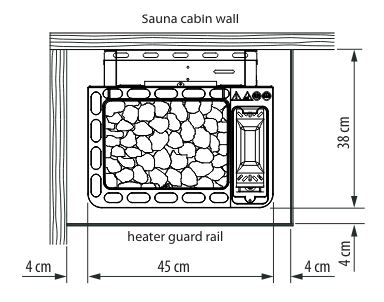

Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)	35 x 4 cm / 35 x 5 cm / 35 x 6 cm
Weight withouth rocks (6,0 / 7,5 / 9,0 kW)	15,5 kg / 16,0 kg / 16,5 kg
Stone filling	15 kg
Power extension required	no
